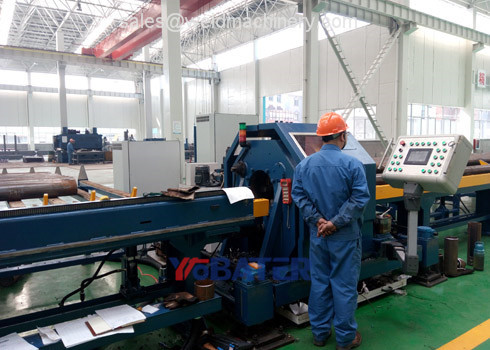

Automated Pipe End Face Beveling Machine for thick piping spool preparation

CNC Pipe End Beveling Machine is applicable to bevel and face the pipe end with Elevating Conveyors for Centering, suitable for various materials such as carbon steel, alloy steel, stainless steel, etc. It can process single V, double V, J, U type bevels and realizes two pipe ends beveled by elevating & turning-round carriage, which can turn in 180 degree in 30 seconds to bevel and face another pipe end.

1) Work piece diameter range: Φ114mm~630 mm;
2) Wall thickness: 4mm~60 mm;
3) Pipe length: 1m-6m
4) Beveling type: single V, 0-37.5°, compounding V
5) Main power: 7.5KW;
6) Tool plate rotation:67-123 rpm (3 shift: 67,123,92)
7) Axial stroke: main shaft: 70 mm Slide stroke: 200 mm
8) Horizontal stroke: slide base ±50 mm
9) Tool feeding stroke: 200 mm
10) Dimension: 2500mmX1800mmX1550mm (L*W*H)
11) Weight: about 6000-7000kg

Youbest Machinery Ltd is engaged in producing the advanced automatic welding machines, pipe prefabrication station, pipe cutting/beveling machine and orbital tube welding machine. The production takes place in a new, state-of-the-art production hall. In our production sector, we put great emphasis on making sure that the production is controlled in accordance with all applicable international welding and quality standards.

We supply our products to international clients. In the framework of cooperation with our partners, we are most active on the markets in China, Thailand, Singapore, Malaysia, India, the Middle East etc. We have a lot of experience with successful implementation of large projects in international companies. Our experience extends to power plant, offshore, petrochemical, oil & gas, shipping building, chemical, boiler & heat exchanger,food & beverage, high pressure vessel, dairy, mining, energy, pharmaceutical industries and so on.

We look forward to discussing your application.
